NEONATE NCPAP (Bubble CPAP)
NICU/PICU/SCANU Equipment

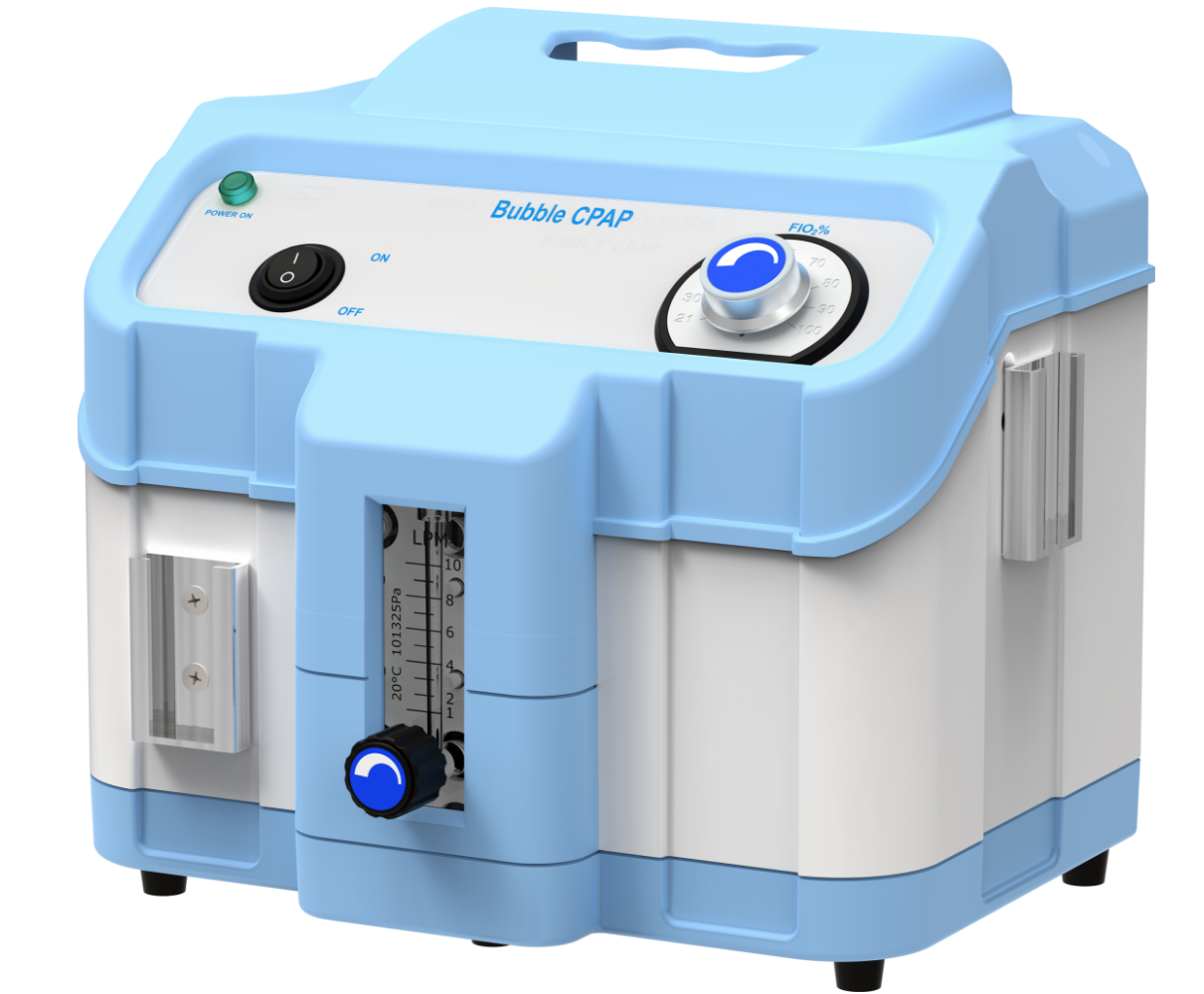

NEONATE NCPAP (Bubble CPAP)

Pigeon AD-IA China Available on Order
  • Neonatal continuous positive airway pressure respiratory support system, that is, CPAP respiratory support system that uses nasal mask or nasal CPAP (Nasal-CPAP) to send continuous positive airflow into the airway. Refers to under the condition of spontaneous breathing, the patient should have a stable respiratory drive and appropriate tidal volume, and artificially apply a certain degree of positive airway pressure during the entire respiratory cycle, so as to help prevent airway collapse and increase functional residual capacity , Improve lung compliance, and increase oxygenation. It is used for newborns with spontaneous breathing to provide continuous positive pressure ventilation support.
Price
Call for Price
Contact us for latest pricing and bulk discounts.
Share:
Specification

Model:AD-IA

Mode:Bubble CPAP

Application Range:Neonatal patient with spontaneous breathing, to offer continuous positive ventilation support.

FiO2 :21%-100%

CPAP:300Pa-1000Pa(3cmH2O-10cmH2O)

Flow rate:1-10L/min(Customization:15-20 L/min)

Noise< 55 dB(A)

Alert mode:Pneumatic

Indicator:Equipment is in working status when the light up.

Power source:AC 220V/110V, 50-60 Hz

Power rate:60VA

Gas source:Oxygen@0.3 -0.4 MPa

Alarm:Sound alert

Humidifier:Standard: PN-2000F; Optional: PN-2000FB, PN-2000FC850

Air compressor:Inbuilt
Feature
1.Integrated Air-Oxygen Blending System
Mechanically precision-engineered gas blending system
2. External Humidification Device
Temperature-controlled hydration of therapeutic gasesConsistent humidity outputDelivery system Antimicrobial corrugated tubing with low-resistance design
3. Bubble CPAP Generator
Pressure range 3-10 cmH2O (user-adjustable)Safety: Intrinsic pressure limitation: maximum output capped at 10 cmH2O Durability: Shatter-resistant polycarbonate construction
4.Integrated Oil-Free Air Compressor
Eliminates external medical air dependency
